Fire Lite Alarms 5622 heat detector 200 fixed & ror

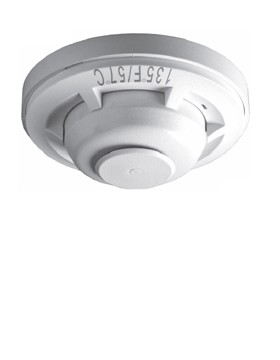

5622 Mechanical Heat Detector

System Sensor"™s 5600 Series mechanical heat detectors offer property protection against fire and for non-life-safety installations, where smoke detectors are inappropriate. Multiple configurations. The 5600 Series offers a full line of configurations to accommodate a broad range of applications. Both single- and dual-circuit models are offered, each available for low- and high-temperature ratings with either fixed temperature or combination fixed-temperature/rate-of-rise (ROR) activation. The ROR element of the fixed/ROR models is restorable, to accommodate field-testing the unit. Installation flexibility. To satisfy a variety of installations, the 5600 Series easily mounts to single-gang and octagonal backboxes. These models also accommodate 4" (101.6 mm) square backboxes when used with a plastic ring. The mounting bracket is reversible to allow for flush- and surface-mount backbox installations. Visual identification. The 5600 Series provides clear markings on the exterior of the unit to ensure that the proper detector is being used. Alphanumeric characters identify the activation method, as well as the temperature rating, in degrees Fahrenheit and Celsius. Fixed temperature models are identified "œFX", while combination fixed/rate-of-rise units are marked "œFX/ROR". The 5600 Series also provides a collector as a post-activation indicator. Once the detector has been activated, the collector drops from the unit to allow easy identification of the specific unit in alarm.

FEATURES

• Multiple configurations available: "“ Fixed-temperature (non-resettable) or combination fixed (non-resettable)/rate-of-rise (self-restoring). "“ Low-temperature and high-temperature ratings. "“ Single-circuit and dual-circuit.

• Easy-to-read alphanumeric identification of detector type and temperature rating.

• External collector provides visual indication of activation.

• Reversible mounting bracket for flush- and surface-mount installations.

• Flexible mounting capabilities: single-gang, 3.5" or 4" octagonal, 4" (101.6 mm) square with plastic ring.

• Easy-to-use terminal screws provide a more positive wiring connection.

• Low-profile design to coordinate with room aesthetics.

PHYSICAL SPECIFICATIONS:

Maximum installation temperature: For models 5601, 5601P, 5603, 5621, 5623: 100 °F (38 °C for A suffix).

For models 5602, 5604, 5622, 5624: 150 °F (65.6 °C for A suffix).

Alarm temperature: For models 5601, 5601P, 5603, 5621, 5623: 135 °F (57 °C).

For models 5602, 5604, 5622, 5624: 194 °F (90 °C).

Rate-of-Rise Threshold: 15 °F (8.3 °C) per minute (models 5601, 5601P, 5602, 5621, 5622 only).

Operating Humidity Range: 5% to 95% RH noncondensing.

Input Terminals: non-polarized, accept 14 to 22 AWG (2.0 to 0.33 mm ²).
