Altronix ALTV248600CB 24vac/28a 28vac/24a 8 ptc p/s

ALTV248600CB

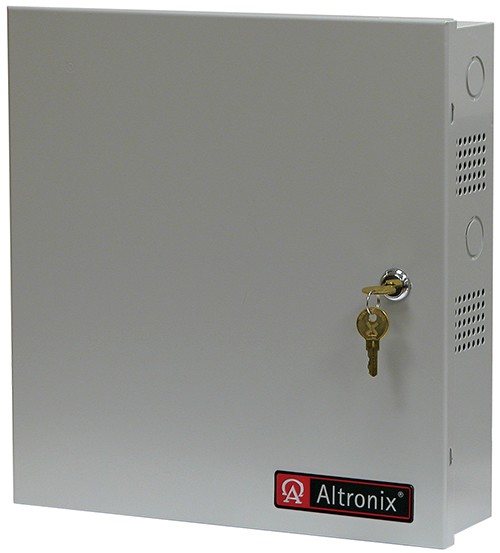

CCTV AC Wall Mount 8 Output Power Supply

Overview
Model ALTV248600CB provides 24VAC or 28VAC distributed via eight (8) PTC protected outputs.    Features/Specifications
• 24VAC or 28VAC selectable output.
• 28 amp @ 24VAC or 25 amp @ 28VAC (350VA) supply current.
• Eight (8) PTC protected outputs.
• Output PTCs are rated @ 2.5 amp.
• 115VAC 50/60Hz, 5.4 amp input.
• Surge suppression.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 24VAC or 28VAC power for CCTV cameras, heaters, and
other video accessories.

Similar Altronix Products

ALTV248	Fused Outputs. 24VAC @ 4A or 28VAC @ 3.5 amp.
ALTV248CB	PTC Outputs. 24VAC @ 4A or 28VAC @ 3.5 amp.
ALTV248175	Fused Outputs. 24VAC @ 7.25A or 28VAC @ 6.25 amp.
ALTV248175CB	PTC Outputs. 24VAC @ 7.25A or 28VAC @ 6.25 amp.
ALTV248300	Fused Outputs. 24VAC @ 12.5A or 28VAC @ 10 amp.
ALTV248300CB	PTC Outputs. 24VAC @ 12.5A or 28VAC @ 10 amp.
ALTV248300M	Fused Outputs. 24VAC @ 12.5A or 28VAC @ 10.5 amp. Smaller Enclosure.
ALTV248300CBM	PTC Outputs. 24VAC @ 12.5A or 28VAC @ 10.5 amp. Smaller Enclosure.
ALTV248600	Fused Outputs. 24VAC @ 28A or 28VAC @ 25 amp.
