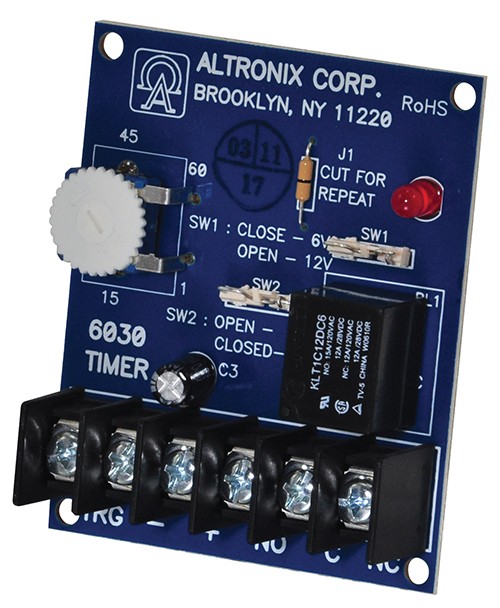

Altronix 6030 timer cut off delay 6/12v dc

Overview
The 6030 programmable timer is suitable for most functions that require a timed operation e.g. Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, Pulser / Flasher, etc.    Features/Specifications
• 6VDC or 12VDC selectable operation.
• Quick and extremely accurate time range adjustment
from 1 second to 60 minutes.
• LED indicates relay is energized.
• Form "C" relay contacts are 5 amp at 120VAC/28VDC.
• Current draw stand by 3mA relay energizes at 75mA.
• Repeat (flasher/pulse) mode.
• Relay activates at the end of the timing cycle.
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.5"W x 3"L x 0.75"H
