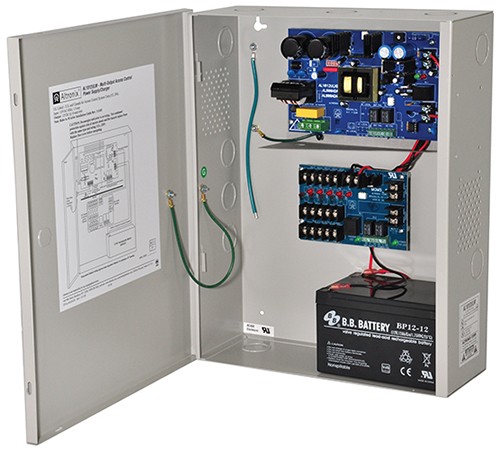

Altronix AL1012ULM 12vdc 10 amp ul listed w/mom

AL1012ULM
Multi-Output Access Control Power Supply Charger

Overview
Model AL1012ULM is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an
output current of 12VDC @ 10 amp total.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.

Features/Specifications
Power Supply/Charger:
• 12VDC output.
• 10 amp of continuous supply current.
• 115VAC 60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision
(form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Multi-Output Module:
• Five (5) PTC protected outputs.
• Class 2 Rated power limited outputs.
• Current limit is 2 amp @ 12VDC per output.
• Provides power for Fail Safe and/or Fail Secure locking devices.
• Fire Alarm Panel or Access Control System trigger inputs. NO or NC supervised trigger input and
polarity reversal trigger input (.4 amp draw from FACP).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts.
