Altronix AL1012ULX 12vdc 10amp accss cntrl 0 vltg

AL1012ULX
Power Supply/Charger

Overview
Model AL1012ULX power supply/charger converts a 115VAC 60Hz input, to 12VDC @ 10 amp of continuous supply current.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# BP6714.

Features/Specifications
• 12VDC output.
• 10 amp of continuous supply current.
• 115VAC 60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact
rated @ 1 amp 28VDC).
• Lifetime Warranty.

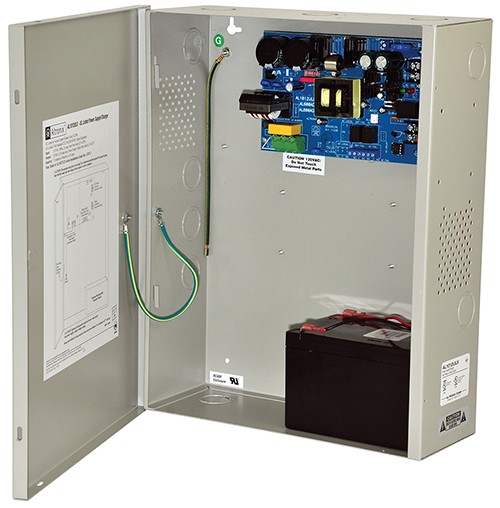

Enclosure
• Accommodates up to one (1) 12VDC/12AH battery.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts.
