Altronix AL1012ULXPD4 al1012ul w/pd4 ul install

AL1012ULXPD4
Power Supply/Charger

Overview

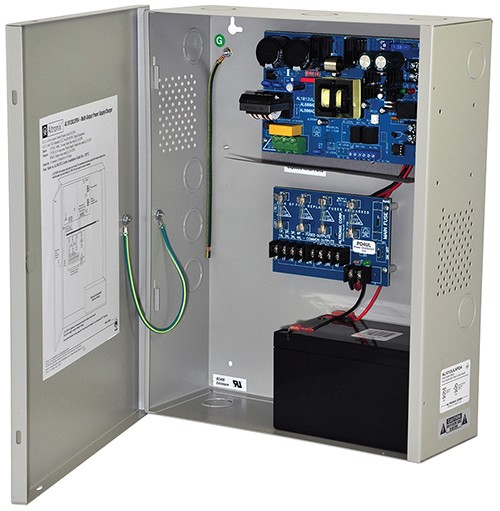

Model AL1012ULXPD4 power supply/charger converts a 115VAC 60Hz input, to 10 amp of continuous supply current @ 12VDC distributed via four (4) fuse protected non power limited outputs. Model AL1012ULXPD4CB is a PTC protected
version of this unit.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC output.
• 10 amp of continuous supply current.
• Four (4) fuse protected outputs.
• Fuses are rated @ 3.5 amp
• 115VAC 60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts.
