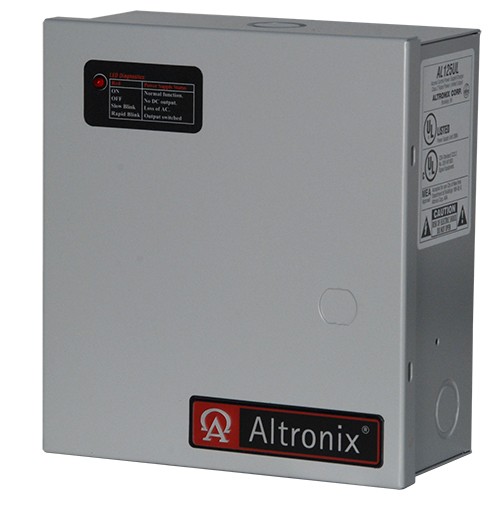

Altronix AL125UL 12/24 vdc 1 amp w/facp disc

AL125UL
Power Supply/Charger

Overview
Model AL125UL power supply/charger converts a 115VAC 60Hz input, to a 12VDC or 24VDC @ 1 amp of total supply current Class 2 Rated power limited output.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# BP6714.
• MEA - NYC Department of Buildings Approved.
• NFPA 101 (Life Safety).

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1 amp of total supply current output.
• Two (2) Class 2 Rated power limited outputs.
• 115VAC 60Hz, .6 amp input.
• Filtered and electronically regulated outputs.
• Normally Open (NO) trigger input.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Automatic switch to stand-by battery when AC fails.
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
• AC input and DC output LED indicators.
• AC power and unit status indicator on the front panel.
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/4AH or one (1) 12VDC/7AH batteries.
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts
