Altronix AL175UL 12/24vdc 1.6amp ul listed

AL175UL
Power Supply/Charger

Overview

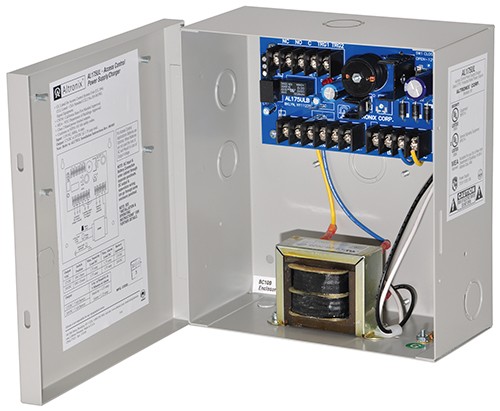

Model AL175UL power supply/charger converts 115VAC 60Hz input, into two (2) PTC protected 12VDC or 24VDC @ 1.75 amp Class 2 Rated power limited supply current outputs.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# BP5864.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:106.
• MEA - NYC Department of Buildings Approved.
• NFPA 101 (Life Safety).

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1.75 amp of continuous supply current.
• Two (2) PTC protected Class 2 Rated power limited outputs.
• 115VAC 60Hz, .6 amp.
• Filtered and electronically regulated outputs.
• Dry Trigger Input.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Automatic switch to stand-by battery when AC fails.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Dry trigger output supervision (form "C" contact rated @ 1 amp 28VDC).
• AC input and DC output LED indicators.
• Lifetime Warranty.

Enclosure
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.
