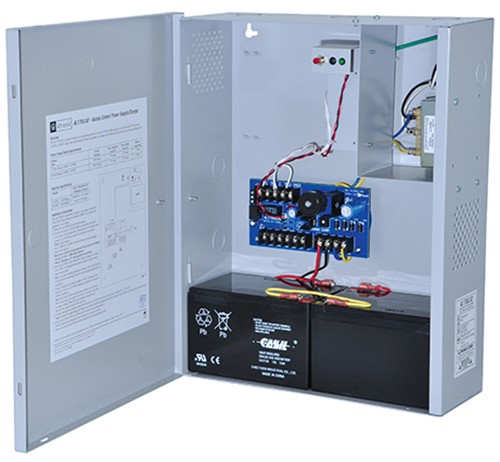

Altronix AL175ULX2 ul listed 1.75a sply w/latch

AL175ULX2
Power Supply/Charger

Overview
Model AL175ULX2 power supply/charger converts 115VAC 60Hz input, into two (2) PTC protected 12VDC or 24VDC @ 1.75 amp Class 2 Rated power limited supply current outputs.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# BP6714.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1.75 amp of continuous supply current.
• Field selectable 12VDC (Range 10VDC - 13VDC) or
24VDC (Range 24VDC - 27VDC) outputs.
• Two (2) PTC protected Class 2 Rated power limited outputs.
• 115VAC 60Hz, .6 amp.
• Filtered and electronically regulated outputs.
• Latching fire alarm tie-in with manual reset.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Automatic switch to stand-by battery when AC fails.
• Aux relay output: (form "C" contact rated @ 1 amp 28VDC).
• AC Fail output relay (form "C" contact rated @ 1 amp 28VDC)
• AC input and DC output LED indicators.
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts
