Altronix AL400UL3 ul lstd tri otpt 5 12 24vdcp/s

AL400UL3
Multi-Output Power Supply/Charger

Overview

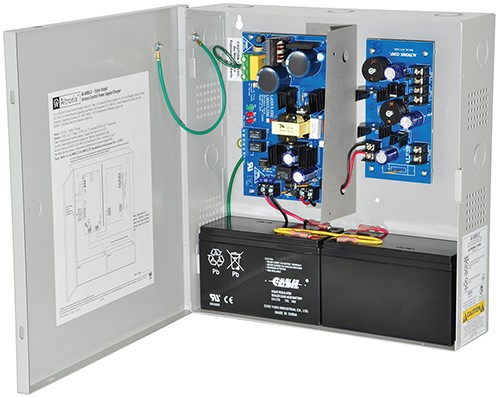

Model AL400UL3 power supply/charger converts a 115VAC 60Hz input into three (3) individually regulated power limited outputs    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for use with Burglar Alarm Systems (UL603),
Hospital Signaling and Nurse Call Equipment (UL1069),
Power Supplies for Fire Protective Signaling Systems (UL1481).
File# S4707.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:100.
• MEA - NYC Department of Buildings Approved.
File# 168-92-E_Vol. IX.
• NFPA 72 Compliant.

Features/Specifications
• 5VDC, 12VDC or 24VDC simultaneous output.
• 1.75 amp @ 5VDC and 12VDC, and 1.5 amp @ 24VDC supply current.
• Class 2 Rated power limited outputs.
• 115VAC 60Hz, 1.45 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
