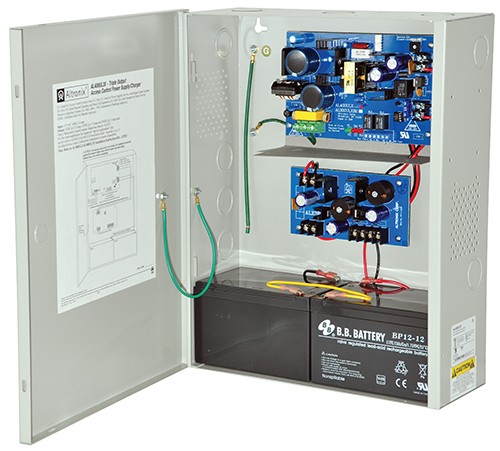

AL400UL3X
Multi-Output Power Supply/Charger

Overview
Model AL400UL3X power supply/charger converts a 115VAC 60Hz input into three (3) individually regulated
power limited outputs.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:100.
• MEA - NYC Department of Buildings Approved.
File# 168-92-E_Vol. IX.
• NFPA 72 Compliant.

Features/Specifications
• 5VDC, 12VDC or 24VDC simultaneous output.
• 1.75 amp @ 5VDC and 12VDC, and 1.5 amp @ 24VDC supply current.
• Class 2 Rated power limited outputs.
• 115VAC 60Hz, 1.45 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts.
