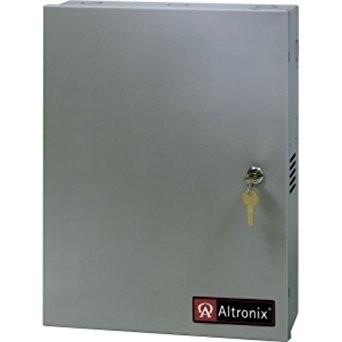

Altronix AL400ULMX 12/24vdc 4amp ul mom5 xlrg cab

Altronix M series access control power supply/chargers are specifically designed for use with access control systems and accessories. These units convert a 115VAC, 60Hz input into five (5) individually protected 12VDC or 24VDC outputs (see specifications). Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open [NO] or normally closed [NC] supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "œC" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.

- Fire Alarm Panel or Access Control System trigger inputs. [NO] or [NC] supervised trigger input and polarity reversal trigger input (4mA draw from FACP).

- Five (5) individual power-limited Class 2 outputs (auto-resettable).

- Filtered and electronically regulated outputs.

- Thermal and short circuit protection with auto reset.

- Overload protection.

- Output relay energizes when unit is triggered (form "œC" contact rated 1A @ 28VDC).

- Supervision:

- AC Fail - Battery Fail and Battery Presence

- Built-in charger for sealed lead acid or gel type batteries

- Instantaneous transfer to stand-by batteries

- Power and input trigger LEDs.

- DC output LED indicator.

- LEDs indicate condition of power outputs.

- UL Listed in the U.S. and Canada.

- CSFM Approved.
