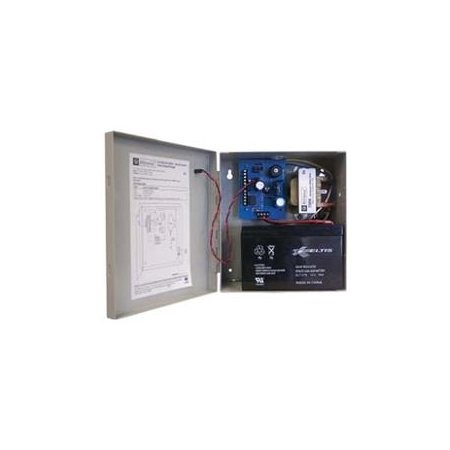

AL400ULXF

The multi-agency approved single output power supply/charger converts an 115VAC/60Hz input into one (1) Class 2 Rated 12VDC or 24VDC power limited output.

Features

•    12VDC or 24VDC selectable output
•    4 amp @ 12VDC or 3 amp @ 24VDC of continuous supply current output
•    Class 2 Rated power limited output
•    115VAC 60Hz, 1.45 amp input
•    Filtered and electronically regulated outputs
•    Short circuit and thermal overload protection
•    Built-in charger for sealed lead acid or gel type battery backup
•    Maximum charge current .7 amp
•    Zero voltage drop upon transfer to battery backup
•    AC input and DC output LED indicators
•    AC fail supervision (form "C" contact rated @ 1 amp 28VDC)
•    Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC)
•    Enclosure:
•    Combination knockouts are 1/2" and 3/4"
•    Accommodates up to two (2) 12VDC/7AH batteries
