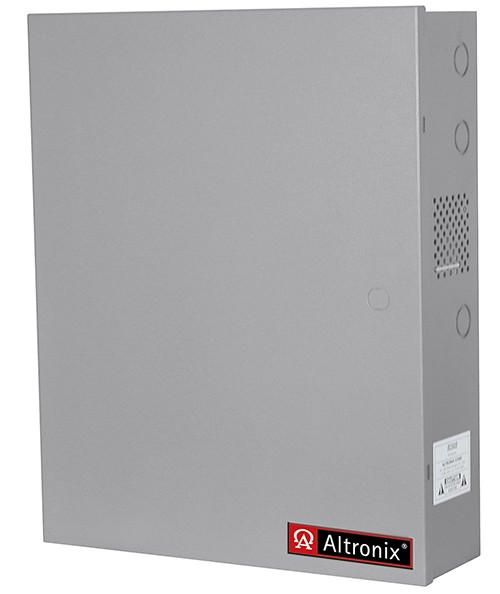

Altronix AL600ULACMCBJ al600ulacmcbj 6a 12 or 24v cab

• Input:

• Input 115VAC 60Hz rated @ 3.5 amp.
• Power supply input options:
• a) One (1) common power input for ACM8CB and lock power (factory installed).
• b) Two (2) isolated power inputs - One (1) to power the ACM8CB and one (1) for lock accessory power (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10 amp total).
• Eight (8) Access Control System trigger inputs.

• Input options:

• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) open collector inputs.
• c) Any combination of the above.

• Output:

• 12VDC or 24VDC @ 6 amp supply current.
• Class 2 Rated power-limited outputs.
• Eight (8) independently controlled outputs.

• Output options:

• a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
• b) Eight (8) form "C" 5 amp rated relay outputs
• c) Any combination of the above.
• Eight (8) auxiliary power outputs (unswitched)
• Output ratings:
• - PTCs are rated @ 2.5 amp.
• Filtered and electronically regulated outputs (built-in power supply).

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (form "C" contact).

• Features:

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Fire Alarm disconnect input options:
• a) Normally open (NO) or normally closed (NC) dry contact input.
• b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1 amp 28VDC not evaluated by UL).
• Short circuit and thermal overload protection.
• AC fail supervision (form "C" contact).

• Visual Indicators:

• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Power Supply Board maximum charge current 0.7 amp.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
• Battery fail and battery presence supervision (form "C" contact).

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• ACM8CB board main fuse is rated at 10 amp.
• BTU/Hr.:
• - 12VDC: 36.85 BTU/Hr.
• - 24VDC: 73.70 BTU/Hr.
• Lifetime Warranty
