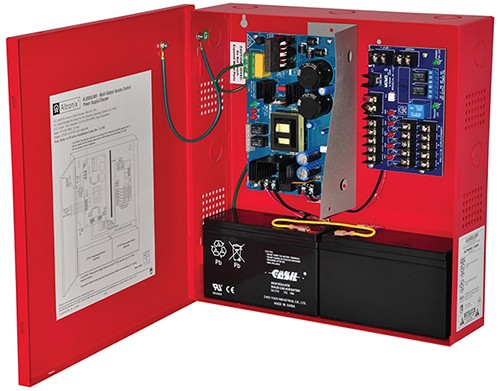

Altronix AL600ULMR al600ulm in red cabinet

AL600ULMR
Multi-Output Power Supply w/Fire Alarm Disconnect

Overview
Model AL600ULMR is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an
output current of 12VDC or 24VDC @ 6 amp total. Model AL600ULM is a Grey Cabinet version of this product.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:104.
• MEA - NYC Department of Buildings Approved.
File# 168-92-E Vol. V.

Features/Specifications
Power Supply/Charger:
• 12VDC or 24VDC selectable output.
• 6 amp of continuous supply current.
• 115VAC 60Hz, 2.5 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Multi-Output Module:
• Five (5) PTC protected outputs.
• Class 2 Rated power limited outputs.
• Current limit is 2 amp @ 12VDC or 24VDC per output.
• Provides power for Fail Safe and/or Fail Secure locking devices.
• Fire Alarm Panel or Access Control System trigger inputs. NO or NC supervised trigger input and
polarity reversal trigger input (.4 amp draw from FACP).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
