Altronix AL600ULPD4R p/s 12/24vdc @6 amp in red enc

AL600ULPD4R
Power Supply/Charger

Overview
Model AL600ULPD4R power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via four (4) fuse protected non power limited outputs. Model AL600ULPD4CBR is a PTC protected version of this unit.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# S4707.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 6 amp of continuous supply current.
• Four (4) fuse protected outputs.
• Fuses are rated @ 3.5 amp.
• 115VAC 60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).

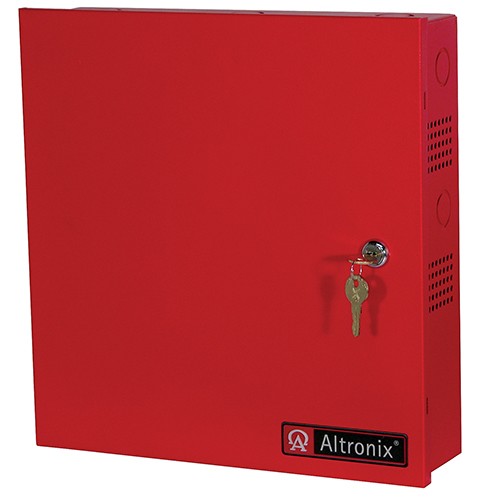

• Red Enclosure.
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
