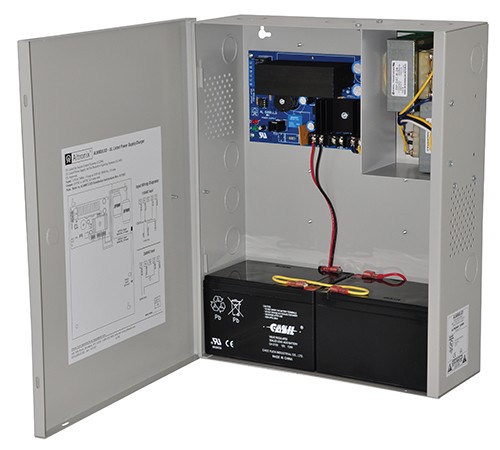

Altronix AL600ULXD 6amp 12/24v dc ul power supply

AL600ULXD
Power Supply/Charger

Overview
Model AL600ULXD power supply/charger converts a 115VAC or 230VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC non-power limited output.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481).
File# S4707.
• CE Approved.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 6 amp of continuous supply current.
• 115VAC 50/ 60Hz, 1.9 amp or 230VAC 50/60Hz, .95 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts.
