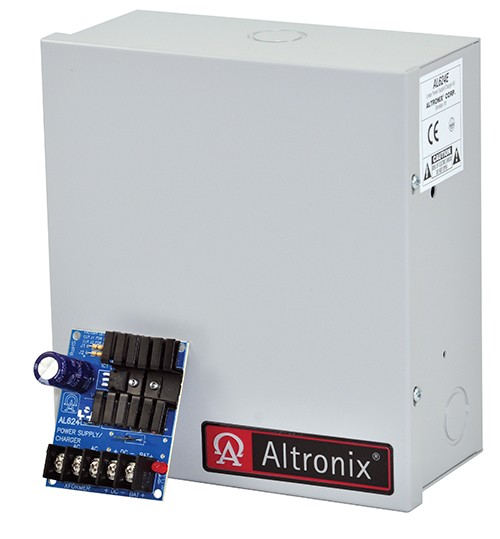

Altronix AL624E 6/12/24v ps in bc100 enclosure

AL624E
Linear Power Supply/Charger

Overview
The AL624E Linear Power Supply / Charger will convert a low voltage AC input to a low voltage DC output.    Features/Specifications
• 6VDC or 12VDC selectable output.
• 1.2 amp of continuous supply current.
• Transformer requirements:
- 12.5VAC/20VA for 6VDC output (Altronix Model # TP1220).
- 16.5VAC/20VA for 12VDC output (Altronix Model # TP1620).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .3 amp.
• AC input and DC output LED indicators.
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/4AH or one (1) 12VDC/7AH batteries.
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.

Applications
This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power.
