Altronix AL802ULADAJ 24vdc@8a nac extendr jmbo encl

AL802ULADAJ (Replaces Model AL802UL2ADAJ)
NAC Power Extender

Overview
Model AL802ULADAJ is an extremely cost effective 8 amp voltage regulated remote power supply/battery charger. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also provides auxiliary power to support system accessories. The unit delivers regulated and filtered 24 volt power to Class B or Class A NAC loop circuits. Additionally, a separate 1.0A auxiliary output with reset for four (4)-wire smoke detectors is available. The 8 amp rated supply current can be divided between the four (4) outputs for powering NAC devices. Each output is rated at 2.5 amp max., and can be independently programmed for Steady, Temporal Code 3 or Strobe Synchronization. All outputs may be programmed for Input to Output Follower Mode (output will follow input. i.e. March Time Input, March Time Output). An individual output of 4 amp is achieved by paralleling 2 outputs. In non-alarm condition independent loop supervision for Class A and/or Class B FACP NAC circuits is provided. In the event of a loop trouble the FACP will be notified via the steered input (input 1 or input 2). In addition, there are common trouble output terminals (NC, C, NO) which are used to indicate general loop/system trouble. A common trouble input is provided for optional NC (normally closed) devices to report trouble to the FACP. Two (2) FACP signaling outputs can be employed and directed to control supervision and power delivery to any combination of the four (4) outputs. The unit also features "œLoop Output" trouble memory indication to help identify troublesome sporatic problems.
Model is available in a smaller enclosure AL802ULADA.    Agency Listings
• UL Listed Control Units and Accessories for Fire Alarm Systems (UL864).
File# S5075.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:107.
• MEA - NYC Department of Buildings Approved.
• FM Approved.

Features/Specifications
Power Supply/Charger:
• 24VDC output.
• 8 amp max total alarm current.
• 115VAC 60Hz., 1.45 amp.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact
rated @ 1 amp 28VDC).
• Lifetime Warranty.

Logic Board:
• Class 2 Rated power limited outputs.
• Two (2) Class A or two (2) Class B FACP inputs.
• Two (2) NC dry contact trigger inputs.
• Two (2) Class A or four (4) Class B Indicating Circuits.
• Two (2) Class B outputs may be paralleled for more power on an indicating circuit.
• One (1) Aux. Power Output @ 1 amp supply current (w/Battery Back Up).
• Signal Circuit Trouble Memory - facilitates quickly locating intermittent system trouble and eliminates costly and
unnecessary service calls. LEDs indicate a prior fault (short, open, ground) has occured on one or
more signaling circuit outputs.
• 2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification
appliances (strobes) continue to operate.
• Horn/Strobe sync protocols include: Wheelock, Gentex, System Sensor, Faraday, Amseco.
• Temporal Code 3 Mode.
• Steady Mode.
• Input to Output Follower Mode (maintains synchronization of notification appliance circuits).
• March Time.
• Compatible with 24VDC fire panels.
• Common Trouble inputs and outputs.
• Ground fault detection.
• Lifetime Warranty.

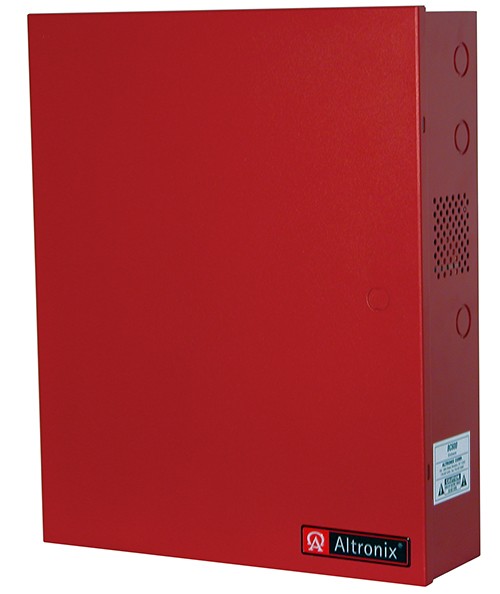

Enclosure
• Accommodates up to four (4) 12VDC/12AH batteries.
• Dimensions: 18"H x 14.5"W x 4.625"D.
