Altronix ALTV1224C4 power supply global 12vdc/24va

ALTV1224C4
CCTV Combination AC & DC Wall Mount

Overview

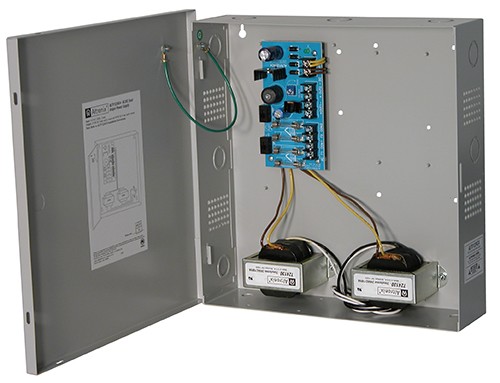

Model ALTV1224C4 provides 12VDC @ 2 amp total supply current distributred via two (2) fuse protected outputs and 24VAC @ 4 amp total supply current distributed via two (2) fuse protected outputs.    Features/Specifications
• 12VDC and 24VAC output.
• 2 amp @ 12VDC and 4 amp @ 24VAC total
supply current output.
• 6 amp total output current.
• Two (2) fuse protected AC outputs.
• Two (2) fuse protected DC outputs.
• DC outputs are filtered and electronically regulated.
• AC Output fuses are rated @ 3.5 amp.
• DC Output fuses are rated @ 1 amp.
• 115VAC 50/60Hz, 1.52 amp input.
• Power ON/OFF switch.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
