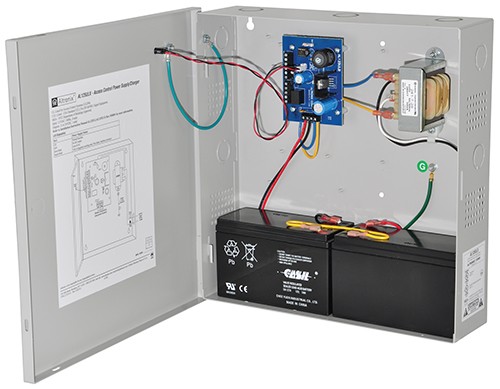

Altronix AL125ULX Power Supply/Charger

The ALTRONIX-AL125ULX is a power supply/charger that converts a 115VAC input into two, PTC protected 12- or 24VDC outputs.

The power supply is equipped with short circuit and thermal overload protection for optimal performance. Sealed lead acid and gel type batteries are compatible with the built-in battery charger, which ensures the backup battery is always at full capacity. Following an AC power failure, the power supply automatically switches to backup battery power.

The unit comes housed in a grey enclosure.

Features:

Filtered and electronically regulated output
Short circuit and thermal overload protection
Built-in charger for sealed lead acid or gel type batteries
Automatic switch over to stand-by battery when AC fails
Wall mount enclosure for indoor use

Technical Specifications:

Input: 115VAC, 50/60Hz, 0.6 amp
Output: 12VDC or 24VDC selectable outputs
Operating temperature: 0 degrees C to 49 degrees C ambient
Dimensions: 13.5"H x 13"W x 3.25"D (343mm H x 330mm W x 83mm D)
Weight: 9.5 Lbs (4.31 kg)
