Altronix ALTV2416300UL 24 or 28 wall mnt 16 out ul ps

ALTV2416300UL

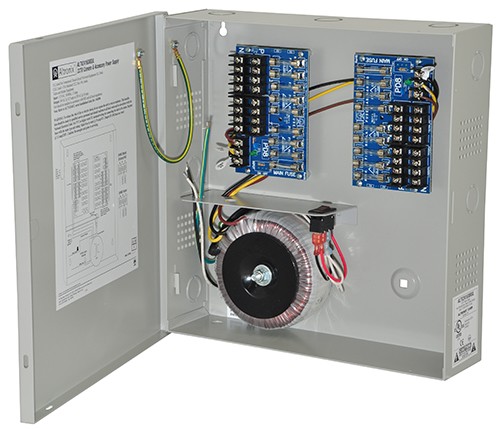

UL/CUL Listed CCTV AC Wall Mount 16 Output Power Supply

Overview
Model ALTV2416300UL provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 24VAC or 28VAC selectable output.
• 12.5 amp @ 24VAC (300VA) or 10 amp @ 28VAC (280VA) supply current.
• Sixteen (16) fuse protected outputs.
• Output fuses are rated @ 3.5 amp.
• 115VAC 50/60Hz, 2.7 amp input.
• Surge suppression.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 24VAC or 28VAC power for CCTV cameras, heaters, and other video accessories.
