Altronix ALTV248ULCB altv248ulcb ul w/crct breaker

ALTV248ULCB3

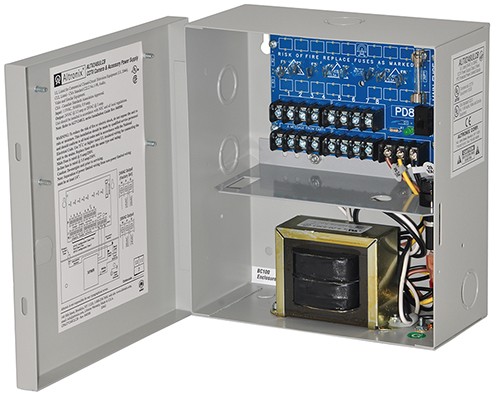

UL/CUL Listed CCTV AC Wall Mount 8 Output Power Supply

Overview
Model ALTV248ULCB3 provides 24VAC distributed via eight (8) PTC protected outputs. Factory installed 3-wire line cord.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 24VAC or 28VAC output.
• 3.5 amp @ 24VAC or 3 amp @ 28VAC (85VA) supply current.
• Eight (8) PTC protected outputs.
• Output PTCs are rated @ 2.5 amp.
• 115VAC 50/60Hz, .9 amp input.
• In-line fuse is rated @ 3.5 amp.
• Surge suppression.
• AC power LED indicator.
• Power ON/OFF Switch.
• Factory installed 3-wire line cord.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 24VAC or 28VAC power for CCTV cameras, heaters, and other video accessories.
