Altronix ALTV248ULCBHI altv248ulcbhi cctv ac wall mou

ALTV248ULCBHI

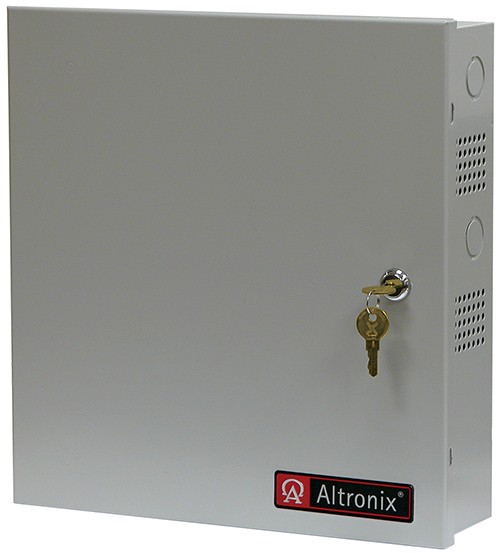

UL Listed CCTV AC Isolated Wall Mount 8 Output

Overview
Model ALTV248ULCBHI provides 24VAC distributed via eight (8) electronically isolated PTC protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 115VAC 50/60Hz, 3 amp input.
• 24VAC @ 12.5 amp total output current.
• Eight (8) electronically isolated PTC protected outputs rated @ 1.6 amp.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 24VAC power for CCTV cameras, heaters, and other video accessories.
