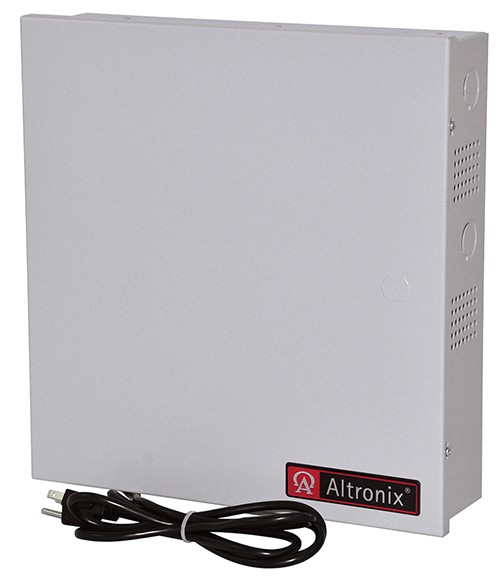

Altronix ALTV615DC416ULCB3 pwr sply 6-15vdc @4a w/6'ln cr

• Input

  • Input 115VAC, 50/60 Hz, 0.9A.

• Output

  • Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
  • 6VDC to 15VDC field adjustable.
  • 4A total continuous supply current (0.25A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.

• Electrical

  • Temperature:

    • Operating: 0 ° C to 49 ° C (32 ° F to 120 ° F).
    • Storage: - 20 ° C to 70 ° C ( - 4 ° F to 158 ° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 9-23 BTU/Hr.
  • System AC input VA requirement: 103.5VA.

• Features

  • AC input and DC output LED indicators.
  • Factory installed 3-wire line cord
  • Illuminated power disconnect circuit breaker with manual reset.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
