Altronix ALTV615DC416UL3 p/s 6-15vdc @4a 16 out w/cord

ALTV615DC416UL3
UL/CUL Listed CCTV DC Wall Mount 16 Output Power Supply

Overview

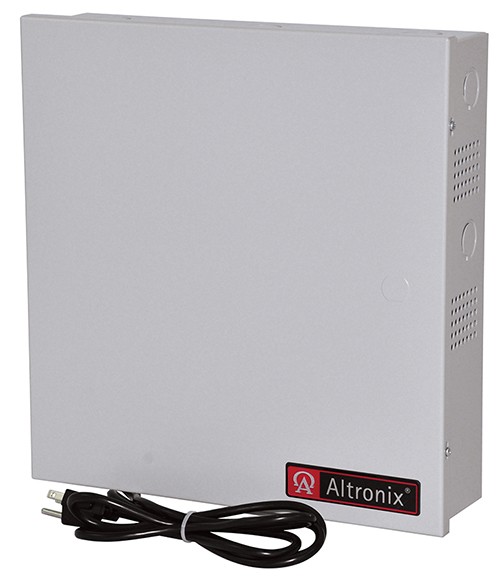

Model ALTV615DC416UL3 provides 6-15VDC distributed via sixteen (16) fuse protected outputs. Factory installed 3-wire line cord.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.

Features/Specifications
• 6-15VDC selectable output.
• 4 amp supply current.
• Sixteen (16) fuse protected Class 2 Rated power limited outputs.
• Output fuses are rated @ 3.5 amp.
• 115VAC 50/60Hz, .9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Factory installed 3-wire line cord.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 6-15VDC power for CCTV cameras, heaters, and other video accessories.
