Altronix ALTV615DC4UL altv615dc4ul ul 6-15vdc 4out

ALTV615DC4UL

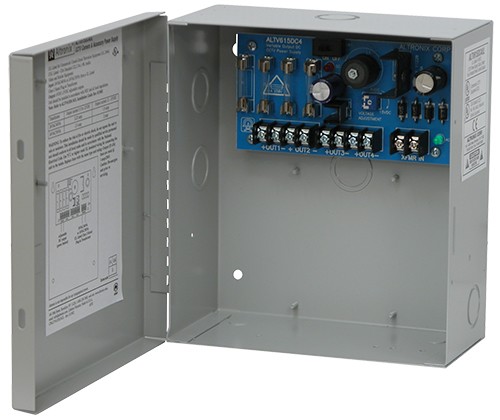

UL/CUL Listed CCTV DC Wall Mount 4 Output Power Supply

Overview
Model ALTV615DC4UL provides 6-15VDC distributed via four (4) fuse protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 6-15VDC selectable output.
• 2.5 amp @ 6-12VDC or 2 amp @ 12-15VDC supply current.
• Four (4) Class 2 fuse protected Rated power limited outputs.
• Output fuses are rated @ 1 amp.
• 24VAC 40VA or 24VAC 50VA input (Altronix Model # TP2440 or TP2450).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• AC power LED indicator.
• Power ON/OFF switch.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 6-15VDC power for CCTV cameras, heaters, and other video accessories.
