Altronix ALTV615DC8UL altv615dc8ul ul 9-15vdc 8out

ALTV615DC8UL

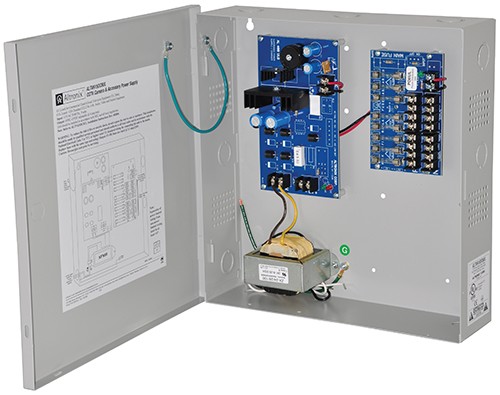

UL/CUL Listed CCTV DC Wall Mount 8 Output Power Supply

Overview
Model ALTV615DC8UL provides 6-15VDC distributed via eight (8) fuse protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 6-15VDC selectable output.
• 4 amp total supply current.
• Eight (8) fuse protected Class 2 Rated power limited outputs.
• Output fuses are rated @ 3.5 amp.
• 115VAC 50/60Hz, .9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• AC power LED indicator.
• Power On/Off switch.
• Unit maintains camera synchronization.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 6-15VDC power for CCTV cameras, heaters, and other video accessories.
