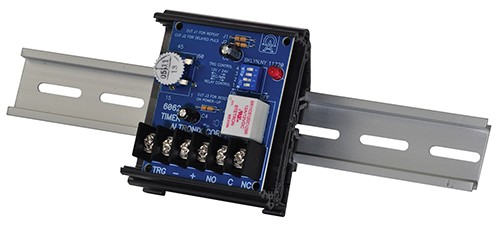

Altronix DTMR1 d/r mnt tmr 12/24vdc 1sc/60mn

Overview
Model DTMR1 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher. A new feature has been added which provides a momentary relay activation at the end of a desired timing cycle. This feature eliminates the need for having to use two (2) timers to achieve this function. Another new feature will cancel (interrupt) timing cycle and reset timer if desired.    Features/Specifications
• 12VDC or 24VDC selectable operation.
• Quick and extremely accurate time range adjustment
from 1 sec. to 60 min.
• Form "C" relay contacts are 8 amp at 120VAC/28VDC.
• Current Draw: Stand-by 3mA, Relay Energized 40mA.
• Triggers via positive DC (+) voltage, dry contact closure,
or removal of contact closure.
• Selectable relay activation at the start or end of the timing cycle.
• One (1) second momentary relay activation at the end of
the timing cycle (eliminates the need to use two (2) timers for this function).
• Built-in reset feature which cancels timing cycle.
• Repeat (pulser/flasher) mode.
• LED indicates relay is energized.
• Includes Snap Track (order Altronix model# ST3), mounting clips
and battery leads.
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.5"W x 3"L x 0.75"H
