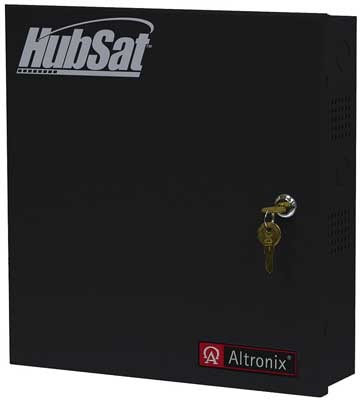

HubSat82D
Passive UTP Transceiver Hub with Integral Camera Power
w/8 HubWayAv Video Balun/Combiners

Overview
Altronix HubSat82D Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a wall mount enclosure. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC fixed or PTZ cameras when utilizing Altronix HubWayAv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC fuse protected outputs with surge suppression. Optionally, the HubSat8/8D can be used as an accessory module to transmit video from up to 8 cameras over a single CAT-5 or higher structured cable back to the HubWay, HubWayLD or HubWayLDH Passive UTP Transceiver Hubs. In addition, the HubSat8/8D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.    Features/Specifications
• Individual selectable 24VAC or 28VAC power outputs with OFF position.
• Unit provides up to 1 amp max. per channel not to exceed a total
of 8 amp maximum current.
• Eight (8) PTC protected outputs.
• Main fuse (internal) is rated at 3.5 amp/250V.
• Input 115VAC 50/60Hz, .9 amp.
• Data:
- RS422/RS485 data input.
• Video:
- Eight (8) channels of quality video over twisted pair up to a distance of
750 ft. per channel.
- Eight (8) 75 ohm video outputs.
• PTC protected outputs.
• PTC"™s are rated @ 1 amp per channel.
• Class 2 Rated power limited outputs.
• Eight (8) individual power LED indicators.
• Includes eight (8) AC (HubWayAv) Video Balun/Combiners.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
