HubSat8D
Passive UTP Transceiver Hub with Integral Camera Power

Overview

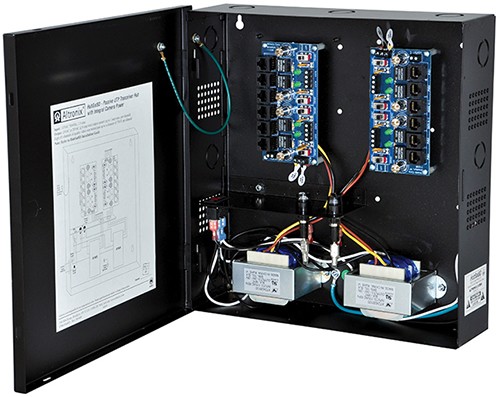

Altronix HubSat8D Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a wall mount enclosure. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv,HubWayDv or HubWayDvi Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC fuse protected outputs with surge suppression. Optionally, the HubSat8D can be used as an accessory module to transmit video from up to 8 cameras over a single CAT-5 or higher structured cable back to the HubWay, HubWayLD or HubWayLDH Passive and Active UTP Transceiver Hubs. In addition, the HubSat8D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-04, Audio, Video
and Similar Equipment.
File# E148639.

Features/Specifications
• Individual selectable 24VAC or 28VAC power outputs with OFF position.
• Unit provides up to 1 amp max. per channel not to exceed a total
of 8 amp maximum current.
• Eight (8) PTC protected outputs.
• Main fuse (internal) is rated at 3.5 amp/250V.
• Input 115VAC 60Hz, 2.5 amp.
• Data:
- RS422/RS485 data input.
• Video:
- Eight (8) channels of quality video over twisted pair up to a distance of
750 ft. per channel.
- Eight (8) 75 ohm video outputs.
• PTC protected outputs.
• PTC"™s are rated @ 1 amp per channel.
• Class 2 Rated power limited outputs.
• Eight (8) individual power LED indicators.
• AC (HubWayAv) and/or DC (HubWayDv) Video Balun/Combiners required.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
