HubWayLDH8
Active UTP Transceiver Hub

Overview

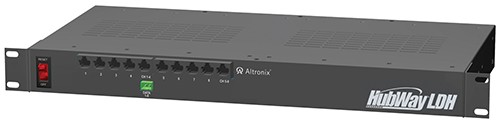

Altronix HubWayLDH8 Active UTP Transceiver Hub transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with fixed or PTZ cameras. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWayLDH8. In addition, the HubSat4/4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-04, Audio, Video
and Similar Equipment.
File# E148639.

Features/Specifications
• Input 115VAC 60Hz, 1.5 amp or 230VAC 50/60Hz, 1 amp.
• Data:
- RS422/RS485 data inputs.
• Video:
- Eight (8) channels of video over twisted pair up to 3000 ft.
- Eight (8) 75 ohm video outputs.
• AC input power indicator.
• Eight (8) individual power LED indicators.
• Picture and Gain control.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC320 - 3-wire grounded line cord (detachable).
• Unit can be rack, wall or shelf mount.
• 1U rack mount chassis for use in standard EIA 19" rack.
• Optional HubSat4S allows transmission of up to four (4) video signals over a
single CAT-5 or higher structured cable.
• Lifetime Warranty.

Rack Chassis
• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions: 1.625"H x 19.125"W x 8.5"D.

Accessories

BNC24J

24" Male to Male Coax Jumper.
