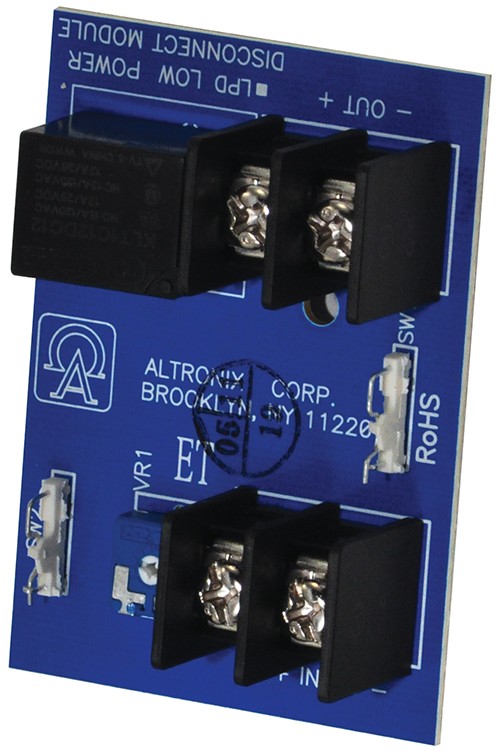

Altronix LPD low power disconn module

LPD
Low Power Disconnect Module

Overview
The LPD low power disconnect module is the convenient way to add a low battery or low power disconnect feature to
any power supply rated up to 8 amp. Threshold is adjustable for added flexibility.    Features/Specifications
• Input voltage: 12VDC or 24VDC max. 8 amp.
• Low voltage cutoff:
12VDC: 10.5 volts (+/- 0.3 volts) 24VDC: 20 volts (+/- 0.3 volts).
• Restore voltage threshold:
12VDC: 11.5 volts (+/- 0.3 volts) 24VDC: 23 volts (+/- 0.3 volts).
• Relay contact rating 8 amp max.
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.2"W x 2.75"L x 1"H
