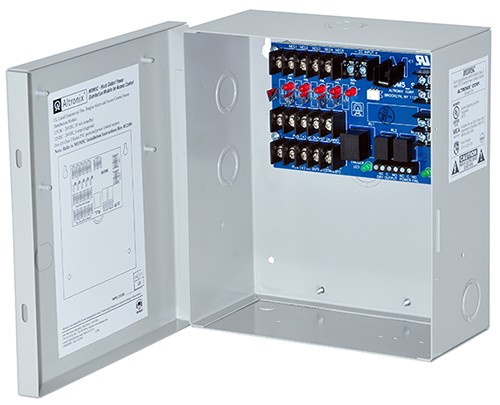

Altronix MOM5C mom5 with cabinet

MOM5C
Multi-Output Power Distribution Module

Overview
Model MOM5C converts one (1) non-power limited DC voltage input to five (5) power limited outputs.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481).
• CSFM - California State Fire Marshal Approved.
• MEA - NYC Department of Buildings Approved.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC or 24VDC selectable output.
• Current limit is 2 amp @ 12VDC or 24VDC per output.
• Five (5) PTC protected outputs.
• Class 2 Rated power limited outputs
• 12VDC or 24VDC input from UL Listed power supply.
• Provides power for Fail Safe and/or Fail Secure locking devices.
• Fire Alarm Panel or Access Control System trigger inputs. NO or NC
supervised trigger input and polarity reversal trigger input
(.4 amp draw from FACP).
• Red LED"™s indicate condition of each power output.
• Power & input trigger LED"™s.
• Lifetime Warranty.

Enclosure
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.

Applications
MOM5C will route power to a variety of access control hardware and devices which includes Mag Locks,
Electric Strikes, Magnetic Door Holders, etc.
