Altronix OLS250 10amp 24vdc ols pwr sppl chrgr

OLS250
Offline Switching Supervised Power Supply/Charge

Overview

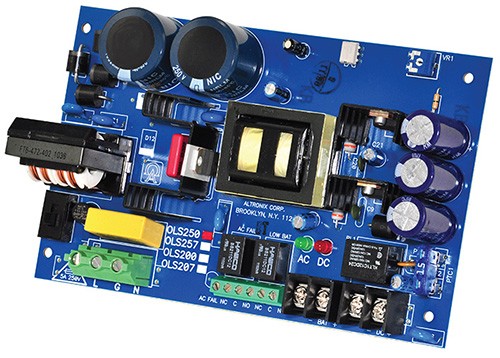

Model OLS250 power supply/charger converts a 115VAC 50/60Hz input, to 10 amp of continuous supply current @ 24VDC.    Features/Specifications
• 24VDC output.
• 10 amp of continuous supply current output.
• 115VAC 50/60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Board
• Dimensions (approximate): 8"W x 5"L x 2.125"H
