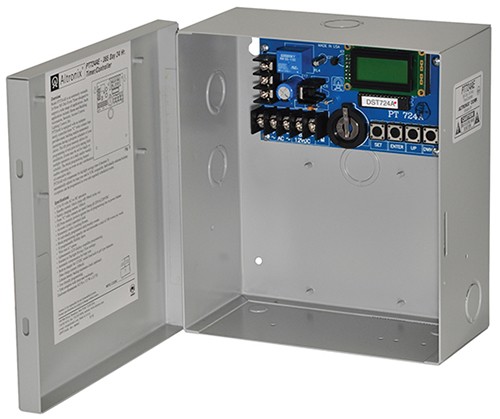

Altronix PT724AE timer 7day/24hr w/encl

PT724AE
365 Day 24 Hr Annual Event Timer


Mandated Daylight Saving Time Change.
All updated models have a yellow dot on the packaging. Microchips to upgrade timers in the field or inventory are available at your distributor. For more information please contact Altronix at info@altronix.com or call us
at 888-258-7669, or refer to the Contact page.


Overview
Model PT724AE is an extremely versatile 24Hour 365 Day Event Timer designed to support a
wide range of applications.    Features/Specifications
• 12 to 24 volts AC or DC operation
• Standby current: 10mA (relay off) 50mA (relay on).
• Form "œC" relay contacts are rated 10 amp @ 120VAC/28VDC.
• EE Prom memory protects against loss of programming due to power failure.
• Accurate crystal controlled clock.
• Momentary and/or Latching Events.
• 50 individually programmed daily/weekly events.
• Block programming capacity can accommodate a total of
350 events per week.
• 10 programmable Holiday dates.
• "œFirst man in" option.
• Alphanumeric LCD display simplifies programming.
• Standard or Daylight Savings Time settings.
• Automatic compensation for leap year.
• Built-in charger for 12VDC sealed lead acid or gel type batteries
• Max charge current 100mA.
• Lithium battery backup maintains clock (optional). (Altronix part # LB2032.)
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/4AH or one (1) 12VDC/7AH batteries.
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.

Applications
• Home and Building Automation, Security, Access Control, Lighting Control, Etc.
