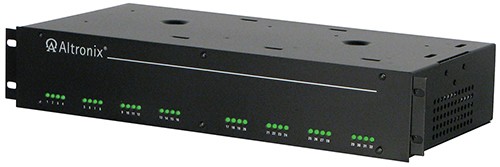

Altronix R2432600UL 24/28v 25/20a 32out rm ul p/s

R2432600UL
CCTV AC Rack Mount 32 Output Power Supply

Overview
Model R2432600UL provides 24VAC or 28VAC distributed via thirty-two (32) fuse protected outputs.    Features/Specifications
• 24VAC or 28VAC selectable output.
• 25 amp @ 24VAC (600VA) or 20 amp @ 28VAC (560VA) supply current.
• Thirty-two (32) fuse protected outputs.
• Output fuses are rated @ 3.5 amp.
• 115VAC 50/60Hz, 6 amp input.
• Surge suppression.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Removable terminal blocks w/locking screw flange.
• Lifetime Warranty.

Rack Chassis
• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions: 3.25"H x 19.125"W x 8.5"D.
