Altronix RB7 mlti-rlay modu 12vdc to 24vdc

RB7
Ultra Sensitive Multiple Relay Module

Overview

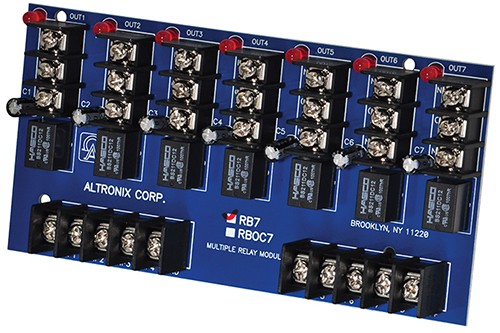

The RB7 Multiple Relay Module incorporates seven (7) isolated form "œC" relay outputs which can be activated via positive (+) low current trigger inputs. Typical applications include the switching of alarm devices (eg. annunciator, signals, etc.) from PGM outputs of alarm panels or from another source.    Features/Specifications
• 12VDC to 24VDC selectable operation.
• Seven (7) independent (3VDC to 24VDC @ 2mA minimum)
positive (+) triggers.
• Seven (7) isolated form "œC" 1 amp/120VAC/28VDC contacts.
• Lifetime Warranty.

Relay
• Dimensions (approximate): 3.25"W x 6.5"L x 1"H
