Altronix EFLOW3NX 12/24vdc@2a 2out fa int xl enc

• Input:

• 120VAC, 60Hz, 3.5 amp.
• Input fuse: 5A/250V.

• Output:

• 12VDC or 24VDC selectable output.
• 12VDC or 24VDC @ 2.0 amp supply current.
• Power-limited output.
• Auxiliary Power-limited output rated @ 1 amp (unswitched).
• Ripple voltage: 960mV.
• Over Voltage Protection.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54 amp.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

• Fire Alarm Disconnect:

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• BTU/Hr.:
• 12VDC: 12.28 BTU/Hr.
• 24VDC: 24.57 BTU/Hr.
• System AC input VA requirement: 420VA.

• Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input, DC output and Battery LED indicators.

• Additional Features:

• Short circuit and overload protection.

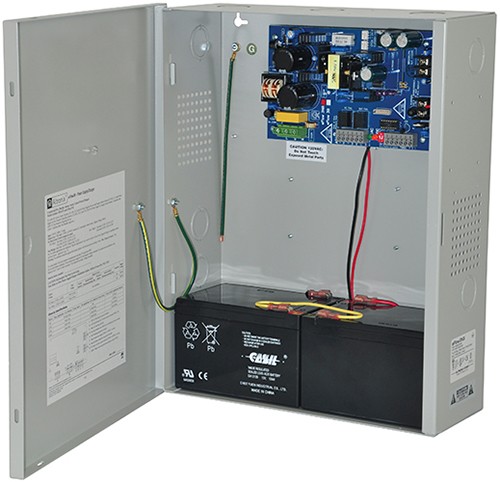

• Unit is complete with power supply, enclosure, battery leads and cam lock.
• Lifetime Warranty
