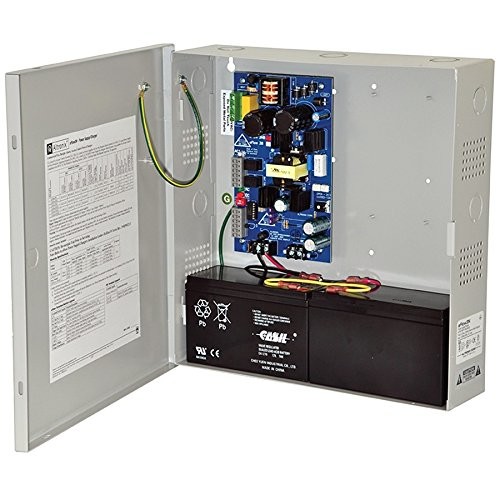

Altronix EFLOW3N 12vdc or 24vdc @2.5a

Special Price: $248.74
SKU: AX-EFL3N
LimitedAvailability
MPN: EFLOW3N

  • Input:

  • 120VAC, 60Hz, 3.5 amp.
  • Input fuse: 5A/250V.

  • Output:

  • 12VDC or 24VDC selectable output.
  • 12VDC or 24VDC @ 2.0 amp supply current.
  • Power-limited output.
  • Auxiliary Power-Limited output rated @ 1 amp (unswitched).
  • Over Voltage Protection.

  • Battery Backup:

  • Built-in charger for sealed lead acid or gel type batteries.
  • Maximum charge current 1.54 amp.
  • Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

  • Supervision:

  • AC fail supervision (form "C" contacts).
  • - Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
  • Battery fail & presence supervision (form "C" contacts).
  • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units(depending on the power supply). Prevents deep battery discharge.

  • Fire Alarm Disconnect:

  • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

  • Electrical:

  • Operating temperature: 0 ° C to 49 ° C ambient.
  • BTU/Hr.:
  • 12VDC: 12.28BTU/Hr.
  • 24VDC: 24.57BTU/Hr.
  • System AC input VA requirement: 420VA.

  • Visual Indicators:

  • Green AC Power LED indicates 120VAC present.
  • AC input, DC output and Battery LED indicators.

  • Additional Features:

  • Short circuit and overload protection.
  • Unit is complete with power supply, enclosure, battery leads and cam lock.
  • Lifetime Warranty
