Altronix EFLOW104NX 24vdc@10a 2 out faint xl encl

• Input:

• 120VAC, 60Hz, 4.5 amp.
• Input fuse: 5A/250V.

• Output:

• 24VDC @ 10.0 amp supply current.
• Auxiliary Power-Limited output rated @ 1 amp (unswitched).
• Over Voltage Protection.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54 amp.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.

• Fire Alarm Disconnect:

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• BTU/Hr.: 124.85 BTU/Hr.
• System AC input VA requirement: 540VA.

• Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input, DC output and Battery LED indicators.

• Additional Features:

• Short circuit and overload protection.

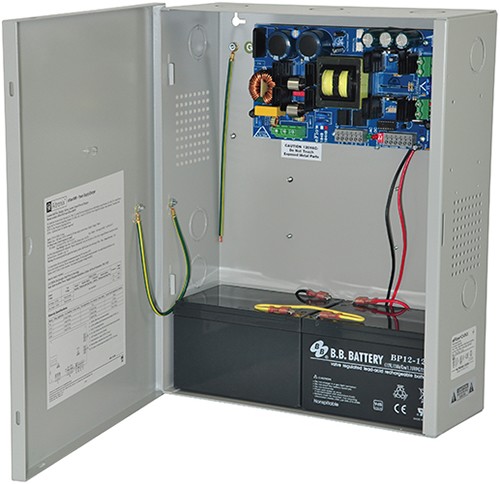

• Unit is complete with power supply, enclosure, battery leads and cam lock.
• Lifetime Warranty
