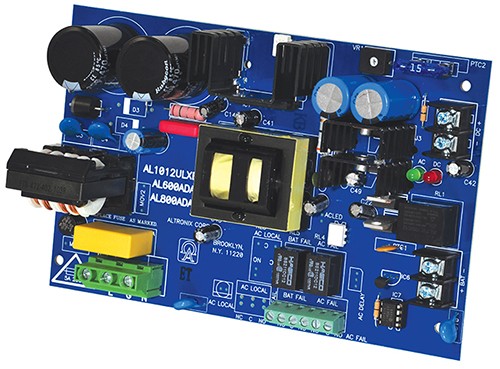

Altronix AL1012XB220 12vdc@10amp board 220v input

• Input:

• Nominal 220VAC (range 198VAC-256VAC) 50/60Hz, 1.3 amp.
• Input fuse rated @ 5 amp/250V.

• Output:

• 12VDC output.
• 10 amp continuous supply current.
• Output fuse rated @ 15 amp/32V.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.7 amp.

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

• Visual Indicators:

• AC input and DC output LED indicators.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• 61.42 BTU/Hr.
• System AC input VA requirement: 286VA.
• Lifetime Warranty
