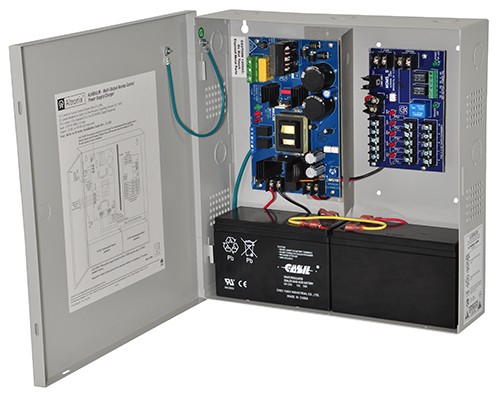

Altronix AL600M220 12/24vdc p/s w/mom5 220volt

• Input:

• Input 220VAC / 60Hz, 0.8 amp.
• Input fuse rated @ 3.5 amp/250V.
• Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.

• Output:

• 12VDC or 24VDC selectable outputs.
• 6 amp supply current.
• Five (5) PTC protected outputs, rated @ 2 amp.
• Output relay energizes when unit is triggered (form "C" contact rated 1 amp @ 28VDC).
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.7 amp.

• Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).
• Power fail supervision relay (form "C" contacts).

• Visual Indicators:

• AC input and DC output LED indicators (power supply board).
• Red LEDs indicate condition of power outputs (multi-output board).
• Power & input trigger LEDs (multi-output board).

• Electrical:

• Operating temperature: 0   ° C to 49   ° C ambient.
• BTU/Hr.:
• - 12VDC: 245.67 BTU/Hr.
• - 24VDC: 491.35 BTU/Hr.
• System AC input VA requirement: 176VA.
• Lifetime Warranty
