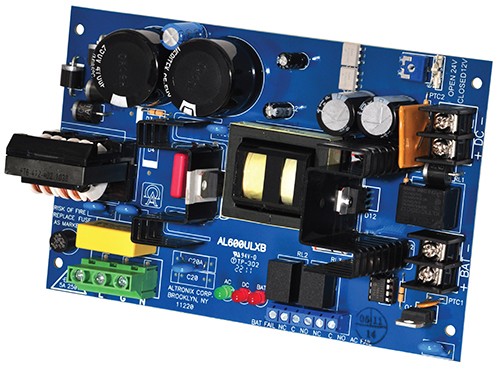

Altronix AL600XB220 12/24 vdc @ 6amp board 220v

• Input:

• Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5 amp.

• Output:

• 12VDC or 24VDC selectable output.
• 6 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.7 amp.

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

• Visual Indicators:

• AC input, DC output and BAT trouble.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• 36.85 or 73.70 BTU/Hr.
• System AC input VA requirement: 330VA.
• Lifetime Warranty
