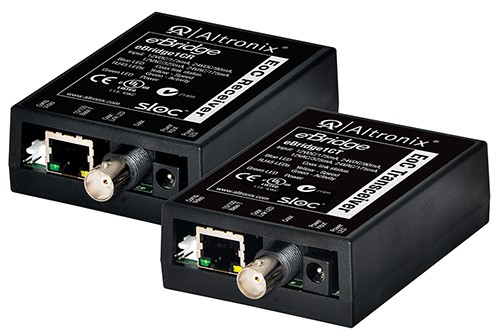

Altronix EBRIDGE1CR ethernet/coax rcvr

Everyday Low Price $147.49
SKU: AX-EBR1CR
LimitedAvailability
MPN: EBRIDGE1CR

  • slocâ„¢ Compliant:

  • Incorporates *slocâ„¢ (Security Link over Coax) technology.
  • * slocâ„¢ is a registered trademark of Intersil Corporation.

  • Input:

  • 12VDC to 24VDC Class 2 power supply (polarity not observed) or 16VAC to 24VAC Class 2 plug-in transformer.

  • Power Consumption:

  • 12VDC/275mA, 24VDC/110mA,
  • 16VAC/375mA, 24VAC/200mA.

  • Ethernet:

  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair CAT-5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100BaseT, half/full duplex, auto negotiation.
  • Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.

  • Coax:

  • Distance: up to 457 m.
  • Connectivity: BNC, RG-59/U or similar.

  • LED Indicators:

  • Blue LED - Coax link connection.
  • Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
  • Green LED - Power.

  • Environmental:

  • Operating Temperature: 14 ° F to 122 ° F (-10 ° C to +50 ° C).
  • Storage Temperature: -4 ° to 158 ° F (-20 ° to 70 ° C).
  • Relative humidity: 85%, +/- 5%, non-condensing.
  • Operating Altitude: -1000 to 6,561.679 ft. (-304.8 to 2000m).

  • Electrical:

  • BTU/Hr.:
  • -VDC: 1.69 - 4.46 BTU/Hr.
  • -VAC: 2.46 - 3.07 BTU/Hr.

  • Accessories:

  • Composite video cable (included) - enables simultaneous composite video signal over the same Coax.
  • Power connector.
  • Lifetime Warranty
