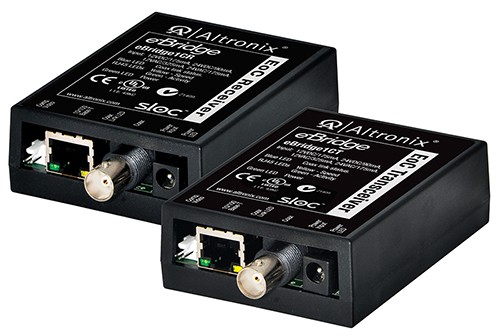

Altronix EBRIDGE1CRT 1-port ip-ovr-coax rec/trn kit

• slocâ„¢ Compliant:

• Incorporates *slocâ„¢ (Security Link over Coax) technology.

• Input:

• 12VDC to 24VDC Class 2 power supply (polarity not observed) or 16VAC to 24VAC Class 2 plug-in transformer.

• Power Consumption:

• 12VDC/275mA, 24VDC/110mA,
• 16VAC/375mA, 24VAC/200mA.

• Ethernet:

• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or higher structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
• Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.

• Coax:

• Distance: up to 457m.
• Connectivity: BNC, RG-59/U or similar.

• LED Indicators:

• Blue LED - Coax link connection.
• Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
• Green LED - Power.

• Environmental:

• Operating Temperature:
• 14 ° F to 122 ° F (-10 ° C to +50 ° C).
• Storage Temperature: -4 ° to 158 ° F (-20 ° to 70 ° C).
• Relative humidity: 85%, +/- 5%, non-condensing.
• Operating Altitude: -1000 to 6,561.679 ft. (-304.8 to 2000m).

• Electrical:

• BTU/Hr.:
• - VDC: 1.69 - 4.46 BTU/Hr.
• BTU/Hr.:
• -VAC: 2.46 - 3.07 BTU/Hr.

• Accessories:

• Composite video cables (included) - enables simultaneous composite video signal over the same Coax.
• Two (2) power connectors.
• Lifetime Warranty
