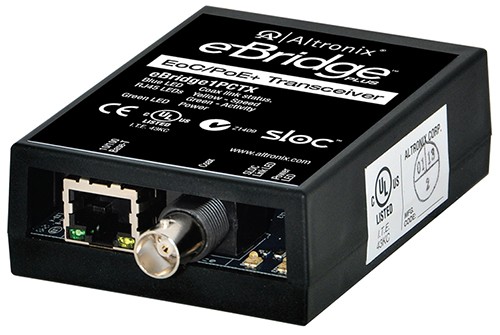

Altronix EBRIDGE1PCTX ip/coax w/poe/poe+ trscr

Special Price: $119.43
SKU: AX-EBR1PCTX
LimitedAvailability
MPN: EBRIDGE1PCTX

  • EBRIDGE1PCTX


  • eBridge1PCTX is a CAT5 to Coax cable Ethernet adapter that delivers data and power over the coax cable in a PoE compliant format. The transceiver enables fast 10/100Base-T Ethernet digital communication to be transmitted over Coax cable. eBridge receiver sends power over the coax to the eBridge1PCTX transmitter under PoE protocol. The eBridge1PCTX, in turn, delivers that PoE compliant power to a PoE enabled camera or IP device. These plug and play units facilitate system upgrades from analog to IP cameras/ devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/ PoE Class, pg. 3). A maximum range from headend to the PoE camera/device is 700m, taking into consideration that up to 100m of structured cable may be deployed at each end.


  • Input:

  • Powered by eBridge receiver.

  • Power Consumption (under maximum load):

  • Powered by eBridge receiver.

  • Ethernet:

  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair CAT5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100BaseT, half/full duplex, auto negotiation.
  • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge1PCTX. Power provided by eBridge Plus receivers to eBridge1PCTX by PoE protocol.
  • Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.

  • Coax:

  • Distance: up to 457m for power delivery of coax.
  • Connectivity: BNC, RG-59/U or similar.

  • LED Indicators:

  • Blue LED - Coax link connection.
  • Green LED - PoE from eBridge1PCRX.

  • Environmental:

  • Operating Temperature:
  • -4   ° F to 120.2   ° F (-20   ° C to +49   ° C).
  • Storage Temperature:
  • -22   ° to 158   ° F (-30   ° to +70   ° C).
  • Relative humidity: 85%, +/- 5%, non-condensing.
  • Operating Altitude: - 1000 to 6,561.679 ft. (- 304.8 to 2000m).

  • Electrical:

  • BTU/Hr.:
  • - 24VDC: 12.28 BTU/Hr.
  • - 24VAC: 11.1 BTU/Hr.

  • Functions:

  • Auto detection and protection of legacy non-PoE cameras/devices.
  • Lifetime Warranty
