Edwards Signaling 102LM-A lens mod amber f/stackable lig

Special Price: $104.99
SKU: ED-102LMA
LimitedAvailability
MPN: 102LM-A

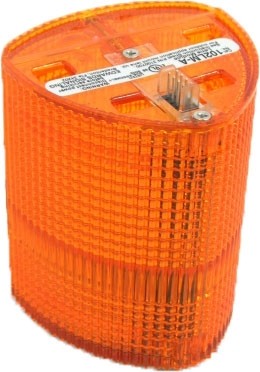

Edwards Signaling Products (102LM-A) Lens Module Amber

NOTE: LED light sources must be used with the corresponding color lens module (e.g., a blue LED light source, 102LS-SLEDB-G1, must be used with a blue lens, 102LM-B).

Edwards 102 Series StackLight is a unique audible-visual signaling device that may contain up to five light modules and a pulsating horn in a single, integrated stack. Two optional sounder modules are also available. The StackLight diffusion optic lens allows viewing from close up while still projecting the light through use of a built-in projection ring.

The lens modules are available with LED, Incandescent, Halogen or Strobe light sources. Options for steady-on or flashing are available. The 102 Series offers a shorter base for panel or conduit mounting as well as a taller base, designed for use with a sounder module.

  • LED, Incandescent, Halogen and Strobe light source
  • Steady-on or flashing
  • Six lens colors available
  • Two optional IP54 sounders available:
    • Single tone module
    • Multi-tone module, eight available tones
  • Sounder modules provide 89dB @ 1 meter/79dB @ 10 ft.
  • Base and light modules are IP65 rated
  • Suitable for indoor and outdoor applications
  • Option for panel or conduit mounting
  • NEMA Type 3R and 4X enclosure
  • Optional mounting not included
