Edwards Signaling 48SINA-N5-25WH steady halogen amber 120ac

Edwards Signaling

Signal Lights, 48SIN Series

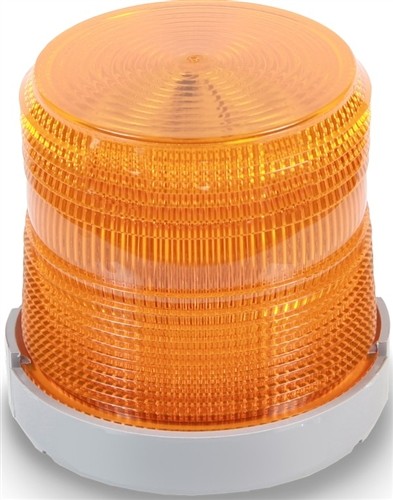

Item#  48SINA-N5-25WH  - Steady Halogen Beacon 120V Ac Amb

• 12 VDC, 24 VAC/VDC, or 120 VAC
• 6 Lens Colors
• Variety of Mounting Options
• 4X Type Enclosure
• UL; cUL Approvals

The Edwards 48SIN Series AdaptaBeacon steady"‘on lights are designed to meet continuous visual signaling requirements. The unique double fresnel lens has been optically engineered to maximize brilliance. This is accomplished with a series of complementing fresnels that cause the dome to "fill" when the light is operating. Beam distance is also increased with fresnel lenses. And, with no moving parts, the lights are immune to shock and vibration. The incandescent lights are available in six colors: red, amber, blue, green, magenta, and clear.

Designed for indoor or outdoor installation. The lights may be direct or 1/2" (13mm) conduit mounted on any plane. However, vertical installation ensures maximum beam width projection. For weatherproof installations units must be mounted vertically with dome up. Use Cat. No. GSK"‘KIT gasket kit for weatherproof surface installation of AC models. May be corner mounted indoors using the Cat. No. CBR, corner mount bracket, or wall mounted indoors using the Cat. No. WBR, wall mount bracket.

Ideally suited for applications where a continuous steady"‘on incandescent light signal is required or where ambient noise makes audible signals difficult to hear. The 48SIN is used where multiple, smaller, stand"‘alone visual signals are required. The gasketed NEMA 4X enclosure ensures installation acceptability in most industrial and commercial locations.

Specifications
