Edwards Signaling EBPS10A
rganization

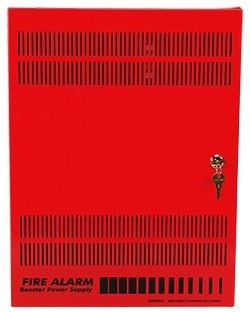

Edwards Signaling EBPS10A power supply booster

Everyday Low Price $612.49
SKU: ED-EBPS10A
LimitedAvailability
MPN: EBPS10A
The Remote Booster Power Supply is a self-contained 24V DC power supply designed to augment fire alarm audible and visual power requirements. The booster contains all of the necessary circuits to monitor and charge batteries, control and supervise four Class B or two Class A Notification Appliance Circuits (NACs) and monitor two controlling inputs from external sources.

Features
  • 10 amp and 6.5 amp models
  • Includes four independent 3 amp NACs - two
  • Configurable as auxiliary outputs
  • Configurable signal rates
  • Field selectable input-to-output correlations
  • NACs configure for either four Class B or two Class A circuits
  • On-board status LEDs for easy recognition of wiring faults

    Specs
  • Manufacturer Utc Fire & Security (Edw)
  • Condition New
  • Trouble Relay - 2 amps @ 30V DC
  • Auxiliary Outputs - Four configurable outputs replace NACs 1, 2, 3 or 4, as auxiliary outputs and 200 mA dedicated auxiliary. NOTE: Maximum of 8 Amps can be used for auxiliary output.
  • Input Current (from an existing NAC) - 3 mA @ 12V DC, 6 mA @ 24V DC
  • Booster Internal Supervisory Current - 70 mA
  • Maximum Battery Size - 10 Amp Hours (2 of 12V10A) in cabinet up to 24 Amp hours with external battery cabinet for fire and security applications; up to 65 Amp hours for access control applications in external battery box
  • Terminal Wire Gauge - 18 - 12 AWG
  • Relative Humidity - 0 to 93% non-condensing @ 32C
  • Temperature Rating - 32F to 120F (0 to 49C)
  • NAC Wiring Styles - Class A or Class B
  • Output Signal Rates - Continuous, 3-3-3 temporal, or follow installed panel's NAC.
  • Ground Fault Detection - Enable or disable via jumper
  • Agency Listings - UL, ULC, CSFM
